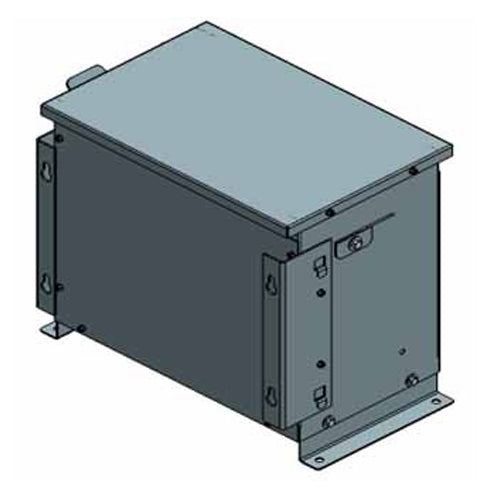

Electric Power 20K5R9C1N1T1, 20KVA, 3 Phase, Primary 600V Delta, Secondary 430V Wye, Copper, Isolation Type Transformer
Regular price
$3,899.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 20K5R9C1N1T1. Primary 600V Delta, Secondary 430V Wye, 60Hz, 20KVA, Three Phase, 3 Coil, Isolation Type Transformer with Neutral at 430V side, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 430V Wye |
| Wattage (w) | 200kVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 230 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
