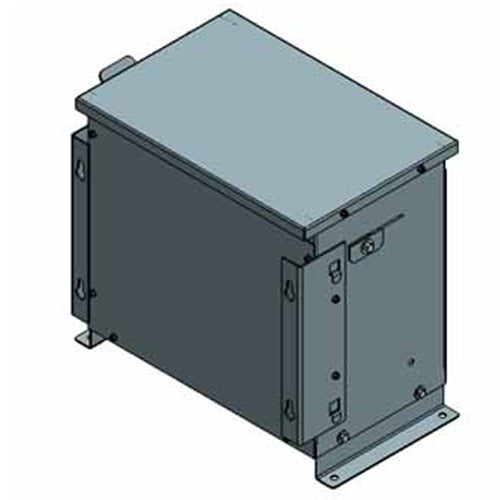

Electric Power 20K5S5C1T1, 20KVA, Isolation Type Transformer, 3 Phase, Primary 600V Delta , Secondary 230Y/133V, Copper
Regular price
$3,899.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 20K5S5C1T1. Primary 600V, Secondary 230V Wye / 133V , 60Hz, Three Phase, 3 Coil, Step Down Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 25.1 |
| Width (in) | 14.4 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 230V Wye / 133V |
| Wattage (w) | 20kVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 230 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
