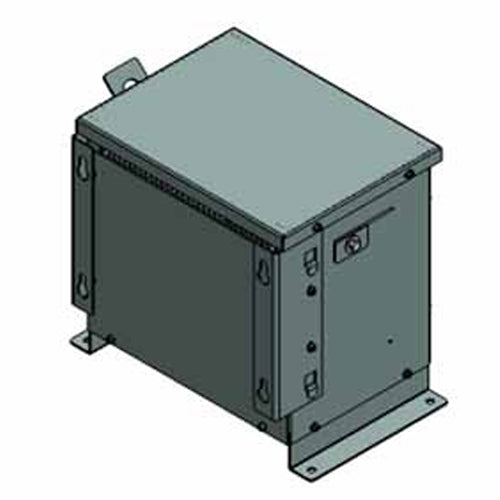

Electric Power 20K6R8C1T1, 20KVA, Isolation Type Transformer, 3 Phase, Primary 600V, Secondary 460Y/266V, Copper
Regular price
$3,899.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 20K6R8C1T1. Primary 600V, Secondary 460V Wye / 266V , 60Hz, Three Phase, 3 Coil, Step Down Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V |
| Secondary Voltage | 460V Wye / 266V |
| Wattage (w) | 20kVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 215 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
