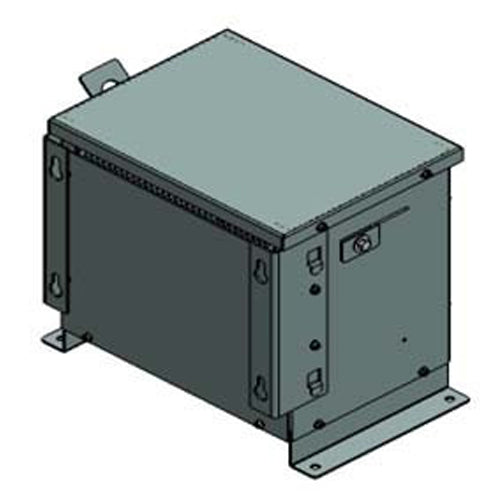

Electric Power 20L4S3ACN1T0, 20KVA, General Purpose Auto Transformer, 3 Phase, Primary 208V Wye, Secondary 380V Wye, Copper Windings, NEMA 1 Enclosure
Regular price
$3,235.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
20KVA, Spec No. 20L4S3ACN1T0. Primary 208V Wye, Secondary 380V Wye, 60Hz, Three Phase, 3 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Step Up Auto Transformer |
| Length (in) | 12.7 (Depth) |
| Width (in) | 21.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208Vac Wye |
| Secondary Voltage | 380Vac Wye |
| Wattage (w) | 20kVA |
| Type | Auto Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
