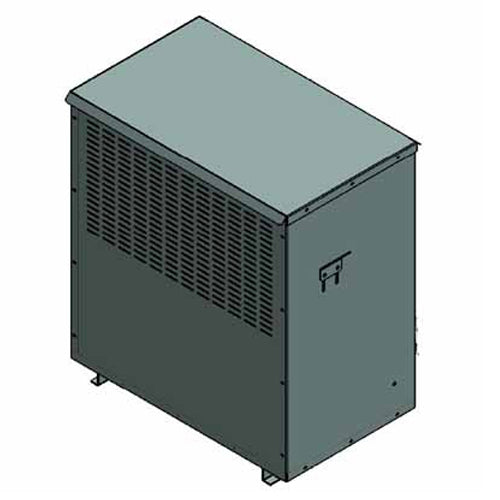

Electric Power 225K2S3C7, 225KVA, General Purpose Isolation Type, 3 Phase, Primary 480D, Secondary 380Y/220, Copper
Regular price
$19,793.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
225KVA, Spec No. 225K2S3C7. Primary 480V Delta, Secondary 380Y/220V, 60Hz, Three Phase, 3 Coils, Isolation Type Step Down Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Step Down Transformer |
| Length (in) | 26 8/9 (Depth） |
| Width (in) | 45 1/2 |
| Height (in) | 46 1/5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 480D 60Hz |
| Secondary Voltage | 380Y/220 |
| Wattage (w) | 225kVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1250 |
| UL Listed | CSA Certified |
| Warranty | 1 Years |
