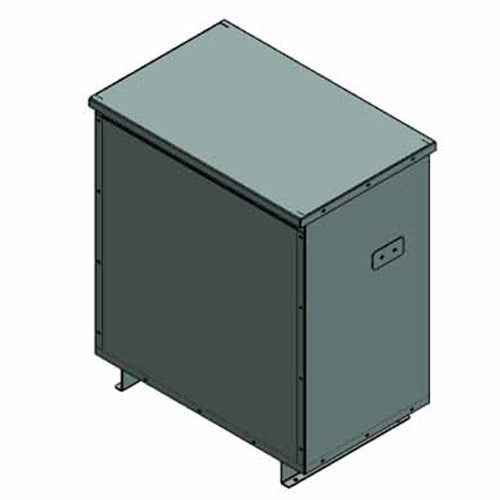

Electric Power 225K5S3C7N1T2, 225KVA, High Efficiency Isolation Type Transformer, 3 Phase, Primary 600V, Secondary 380Y/220V, Copper
Regular price
$23,995.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
225KVA, Spec No. 225K5S3C7N1T2. Primary 600V Delta, Secondary 380V/220V Wye, 60Hz, 3 Phase, 3 Coil, Step Down Isolation Type Transformer, NEMA 1 Enclosure. Copper Windings. Made in Canada.
| Length (in) | 26.6 |
| Width (in) | 41.6 |
| Height (in) | 48.1 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 380Y / 220V Wye |
| Wattage (w) | 225kVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1670 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
