Electric Power 225K5SC7N1T2, 225KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600D, Secondary 600/347V, Copper
Regular price
$18,999.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

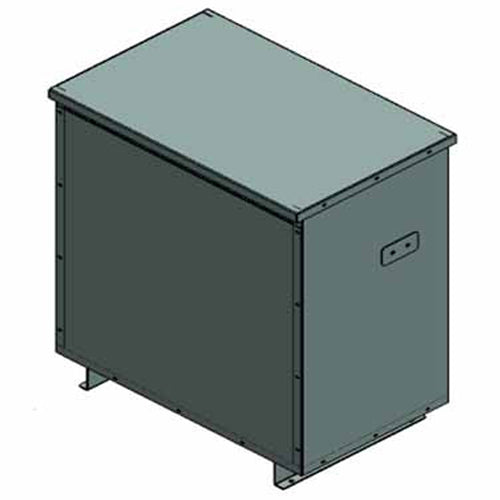

225KVA, Spec No. 225K5SC7N1T2. Primary 600D, Secondary 600Y/347, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada. NRCAN compliance.
| Length (in) | 26.6 (Depth) |
| Width (in) | 41.6 |
| Height (in) | 48.1 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V 60Hz Delta |
| Secondary Voltage | 600V Wye / 347V |
| Wattage (w) | 225kVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1670 |
| UL Listed | CSA Certified |
| Warranty | 2 Years |
