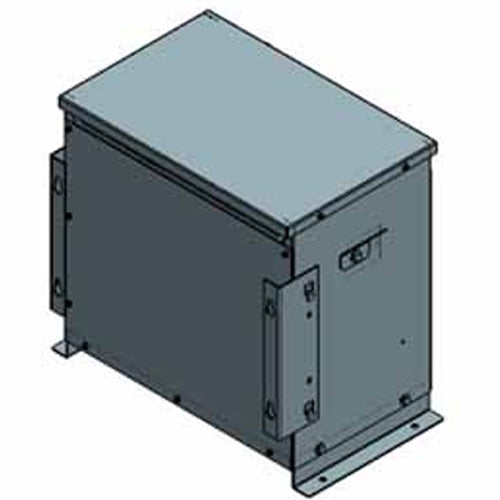

Electric Power 25K1Q2D3N1T0, 25KVA, General Purpose Isolation Transformer, 1 Phase, Primary 120/240V, Secondary 408/204V, Copper
Regular price
$3,975.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
25KVA, Spec No. 25K1Q2D3N1T0. Primary 120/240V, Secondary 408/204 Neutral, 60Hz, Single Phase, 2 Coils, Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.50 |
| Height (in) | 24.3 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 120/240V |
| Secondary Voltage | 408V/204 Neutral |
| Wattage (w) | 25KVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 340 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
