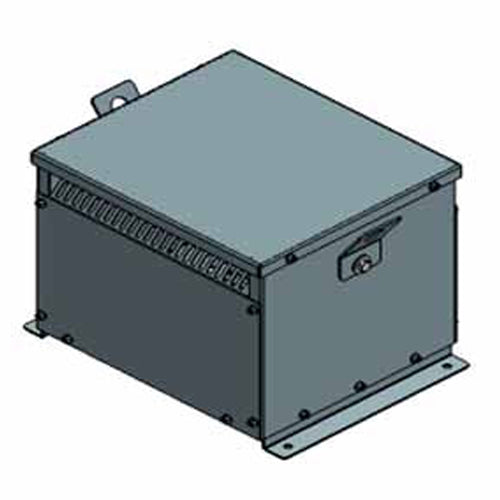

Electric Power 301XS1ABN1T0, 30KVA, General Purpose Auto Transformer, 3 Phase, Primary 620V, Secondary 575V, Copper
Regular price
$2,798.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 301XS1ABN1T0. Primary 620V Wye, Secondary 575V Wye, 60Hz, Three Phase, 3 Coil, Auto Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.7 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 11.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 620V 60Hz Wye |
| Secondary Voltage | 575V Wye |
| Wattage (w) | 30KVA |
| Type | Auto Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
