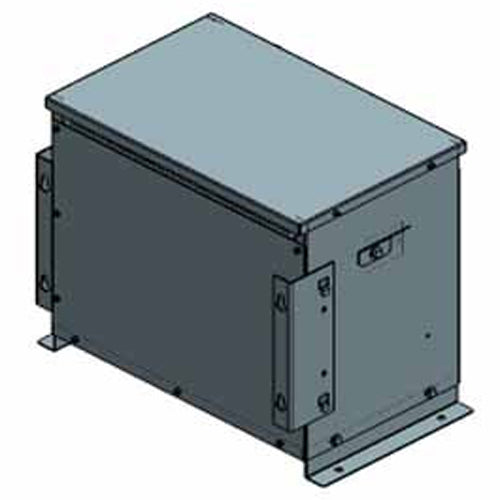

Electric Power 30J4P6D2T0, 30KVA, General Purpose Step Down Isolation Transformer, 1 Phase, Primary 240V, Secondary 220V, Copper
Regular price
$3,975.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
30KVA, Spec No. 30J4P6D2T0. Primary 240V, Secondary 220V, 60Hz, Single Phase, 1 Coil, Isolation Type Step Down Voltage Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 24.3 |
| Height (in) | 28.5 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 240V 60Hz |
| Secondary Voltage | 220V 60Hz |
| Wattage (w) | 30KVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 280 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
