Electric Power 30K5R4C3N1T2dB, Low Noise Transformer 30KVA, General Purpose Isolation Type, 3 Phase, Primary 600V Delta, Secondary 208Y/120, Copper
Regular price
$4,599.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

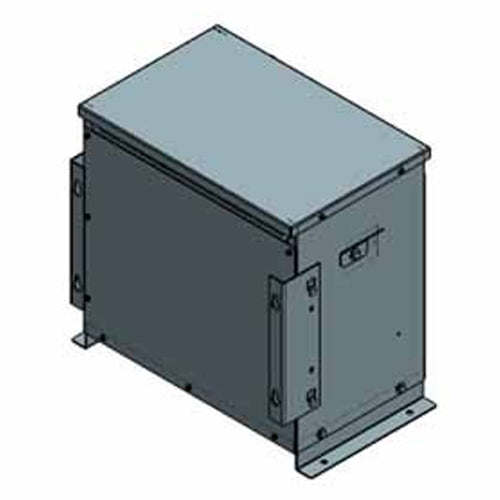

Low Noise Transformer, 30KVA, Spec No. 30K5R4C3N1T2dB. Primary 600D, Secondary 208Y/120, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. CSA C22.2 No 47, C802.2 / NRCAN 2018
* Estimated 10dB less than regular same capacity transformer. Remember we cannot measure it as it is not required by CSA but practical you will fell it
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.5 |
| Height (in) | 24.30 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600D 60Hz |
| Secondary Voltage | 208Y/120 |
| Wattage (w) | 30KVA |
| Material | CU |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 390 |
| UL Listed | CSA C22.2 No 47, C802.2 / NRCAN 2018 |
| Warranty | 2-Year |
