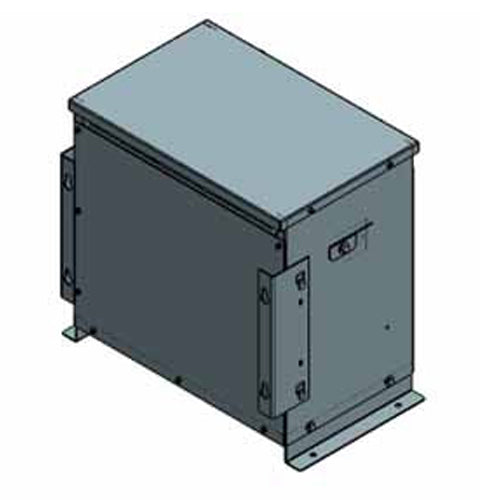

Electric Power 30L4SC2T1, 30KVA, General Purpose Isolation Transformer, 3 Phase, Primary 208D, Secondary 600Y, Copper
Regular price
$5,299.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 30L4SC2T1. Primary 208D, Secondary 600Y, 60Hz, Three Phase, 3 Coil, Step Up Transformer, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Isolation Transforme |
| Length (in) | 17 (Depth) |
| Width (in) | 28-4/7 |
| Height (in) | 24-1/3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208D 60Hz |
| Secondary Voltage | 600Y |
| Wattage (w) | 30KVA |
| Type | Auto Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 280 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
