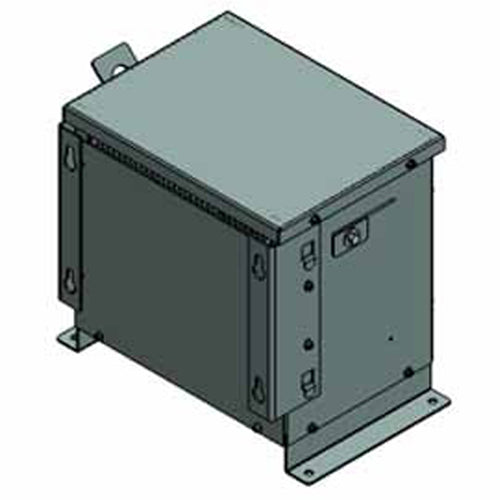

Electric Power 30MS3ACT0, 30KVA, Auto Transformer, 3 Phase, Primary 600V/347, Secondary 380Y/220, Copper
Regular price
$2,992.26
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 30MS3ACT0. Primary 600Y/347, Secondary 380Y/220, 60Hz, 30KVA, Three Phase, 3 Coil, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.5 (Depth) |
| Width (in) | 19.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600Y/347V 60Hz |
| Secondary Voltage | 380Y/219 |
| Wattage (w) | 30KVA |
| Type | Auto Transformer without Neutral |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
Pre order: Lead time 1-2 weeks
