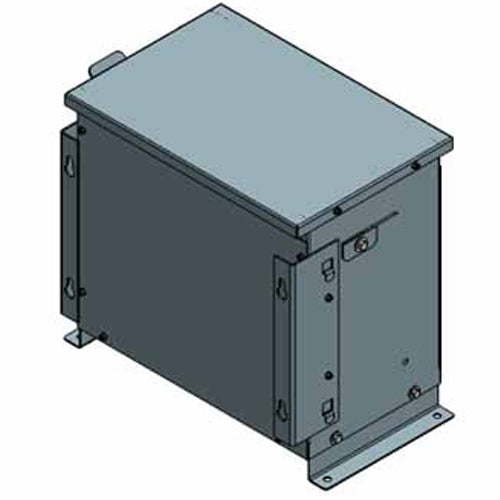

Electric Power 30MS6A1T0, 30KVA, General Purpose Auto Transformer, 3 Phase, Primary 600V Wye, Secondary 220V Wye, Copper
Regular price
$3,295.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
30KVA, Spec No. 30MS6A1T0. Primary 600V Wye, Secondary 220V Wye, 60Hz, 3 Phase, 3 Coil, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Family | Step Down Auto Type Transformer |
| Length (in) | 14.4 |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Wye |
| Secondary Voltage | 220V Wye |
| Wattage (w) | 30KVA |
| Type | Auto Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 215 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
