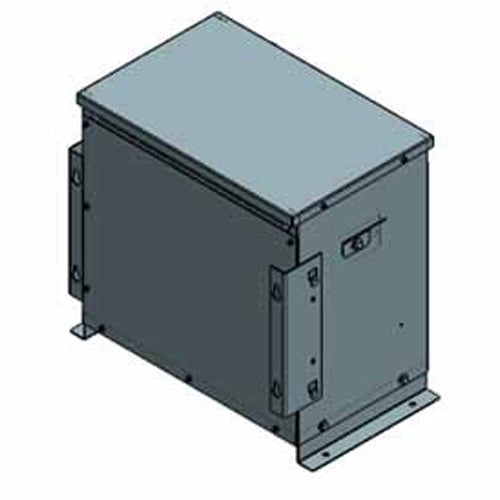

Electric Power 35J4R6C2T1, 35KVA, General Purpose Isolation Transformer, 3 Phase, Primary 240V Delta, Secondary 400Y/231 Wye, Copper
Regular price
$5,998.24
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
35KVA, Spec No. 35J4R6C2T1. Primary 240V Delta, Secondary 400V/231V Wye, 60Hz, 3 Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.5 |
| Height (in) | 24.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 240V Delta |
| Secondary Voltage | 400Y/231V Wye |
| Wattage (w) | 35KVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 280 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
