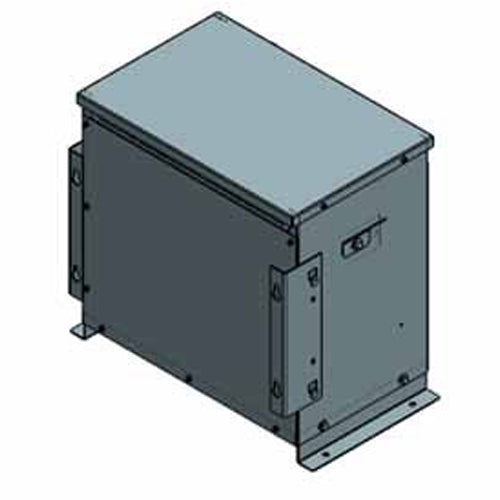

Electric Power 35K5R6C2N1T1, 35KVA, General Purpose Isolation Type, 3 Phase, Primary 600V Delta, Secondary 400Y/231V, Copper
Regular price
$5,720.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
35KVA, Spec No. 35K5R6C2N1T1. Primary 600V Delta, Secondary 400V/231V Wye, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 24.3 |
| Height (in) | 28.5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 400Y/231 |
| Wattage (w) | 35KVA |
| Type | Isolation Transformer |
| IP Rating | NEMA 1 |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 280 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
