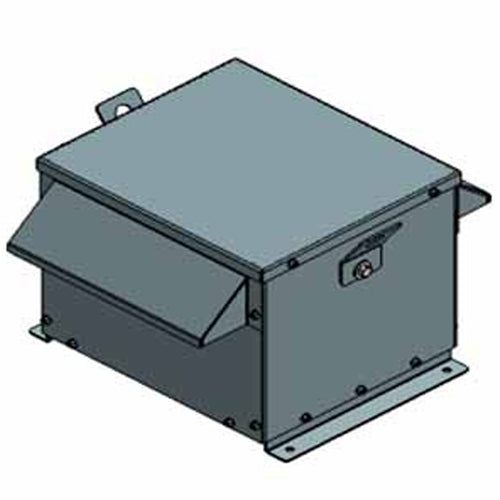

Electric Power 3J8PDBN3T0, 3KVA, General Purpose Isolation Transformer, 1 Phase, Primary 347V, Secondary 120V, Copper, NEMA 3R Enclosure, Outdoor Rated
Regular price
$922.88
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
3KVA, Spec No. 3J8PDBN3T0. Primary 347V, Secondary 120V, 60Hz, Single Phase, 1 Coil, Isolation Type Transformer, NEMA 3R Enclosure, Waterpoof Design, Good for Outdoor LED Sign Light Application. Copper Conductor. Made in Canada.
| Length (in) | 18.50 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 11.8 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 347V 60Hz |
| Secondary Voltage | 120V 60Hz |
| Wattage (w) | 3KVA |
| Type | Isolation Transformer |
| IP Rating | Type 3R Enclosure |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
