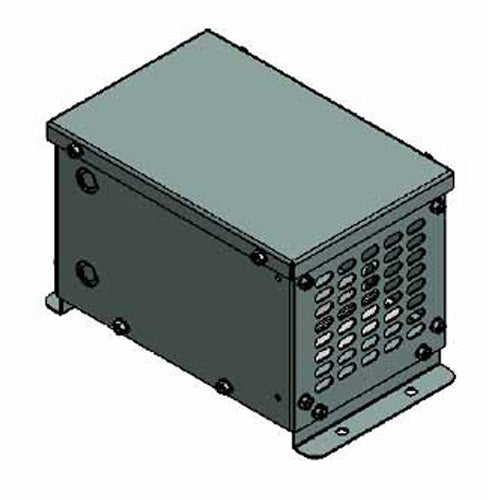

Electric Power 3JP6DAN1T0, 3KVA, General Purpose Step Up Isolation Transformer, 1 Phase, Primary 120V, Secondary 220V, Copper
Regular price
$922.88
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
3KVA, Spec No. 3JP6DAN1T0. Primary 120V, Secondary 220V, 60Hz, Single Phase, 1 Coil, Isolation Type Step Up Voltage Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 7 1/2 (Depth) |
| Width (in) | 12 |
| Height (in) | 7 1/3 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 120V 60Hz |
| Secondary Voltage | 220V 60Hz |
| Wattage (w) | 3KVA |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 55 |
| UL Listed | CSA Listed |
| Warranty | 1 Years |
| Cross Refefence | EPI 3jp6da |
