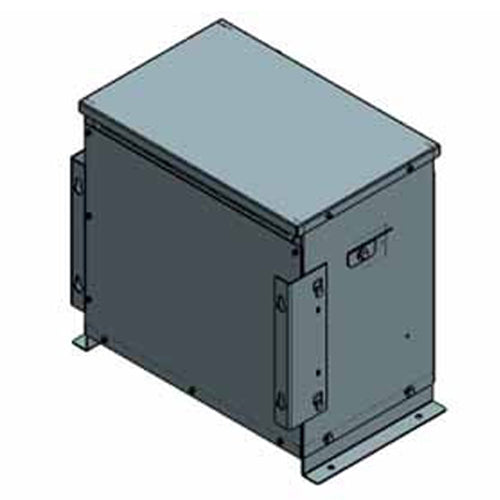

Electric Power 40L4SA2N1T0, 40KVA, General Purpose Step-Up Transformer, 3 Phase, Primary 208V, Secondary 600V, Copper Winding, Auto Type
Regular price
$5,190.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 40L4SA2N1T0, Primary 208V Wye, Secondary 600V Wye, 60Hz, Three Phase, 3 Coil, Step Up Transformer, Auto Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 19.3 (Depth) |
| Width (in) | 29.5 |
| Height (in) | 27.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Wye 60Hz |
| Secondary Voltage | 600V Wye |
| Wattage (w) | 40KVA |
| IP Rating | NEMA 1 |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 340 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
