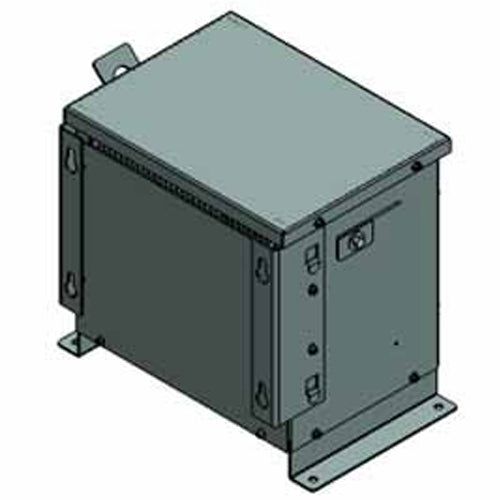

Electric Power 40M4S3A1N1T0, 40kVA, Auto Transformer, 3 Phase, Primary 240Y, Secondary 380Y, Copper
Regular price
$3,445.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
40KVA, Spec No. 40M4S3A1N1T0. Primary 240Y Secondary 380Y, 60Hz, Three Phase, 3 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 26.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 240V Wye |
| Secondary Voltage | 380V Wye |
| Wattage (w) | 40KVA |
| Type | Auto Type Transformer, If there is no Neutral at Primary 240V side, there should be no Neutral at Secondary 380V side, please be advised. |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 215 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
| Cross Refefence | Electric Power Model# 40M4S3ACT0 |
