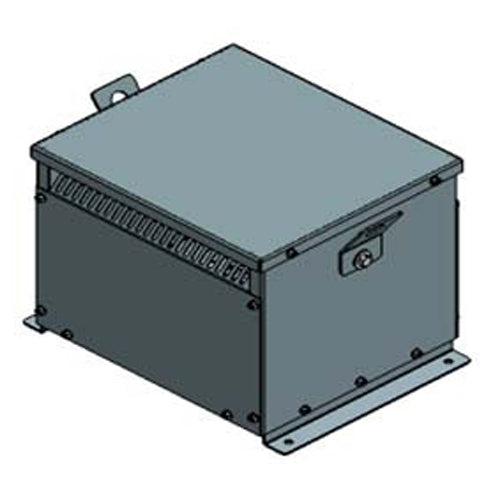

Electric Power 451XS1ABN1T0, 45KVA, General Purpose Auto Transformer, 3 Phase, Primary 620V, Secondary 575V, Copper
Regular price
$2,860.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 451XS1ABN1T0. Primary 620V Wye, Secondary 575V Wye, 60Hz, Three Phase, 3 Coil, Auto Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.7 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 11.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 620V 60Hz Wye |
| Secondary Voltage | 575V Wye |
| Wattage (w) | 45KVA |
| IP Rating | NEMA 1 |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 90 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
