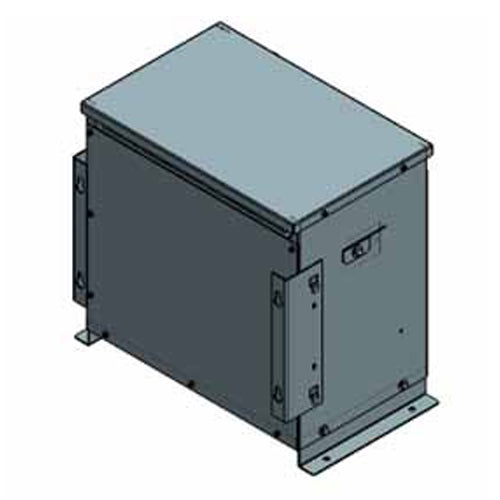

Electric Power 45J3S3C3T1, 45KVA, Isolation Transformer, 3 Phase, Primary 208D, Secondary 380Y/220, Copper
Regular price
$7,056.25
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 45J3S3C3T1. Primary 208V, Secondary 380Y/220, 60Hz, Three Phase, 3 Coil, Isolation Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.50 |
| Height (in) | 24.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Delta |
| Secondary Voltage | 380Y/220 |
| Material | CU |
| Wattage (w) | 45KVA |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 390 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
