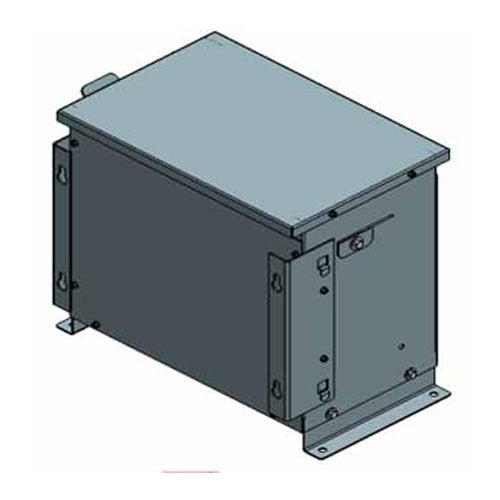

Electric Power 45K2S3C3N1T1, 45KVA, General Purpose Isolation Type, 3 Phase, Primary 480D, Secondary 380Y/220, Copper
Regular price
$6,295.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
45KVA, Spec No. 45K2S3C3N1T1. Primary 480V Delta, Secondary 380Y/220V Wye, 60Hz, Three Phase, 3 Coils, Isolation Type Step Down Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 19.30 (Depth) |
| Width (in) | 29.50 |
| Height (in) | 27.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 480V Delta |
| Secondary Voltage | 380Y/220 Wye |
| Wattage (w) | 45KVA |
| Material | CU |
| Type | Isolation Type Transformer, Secondary Output has Neutral Ouput |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 440 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
