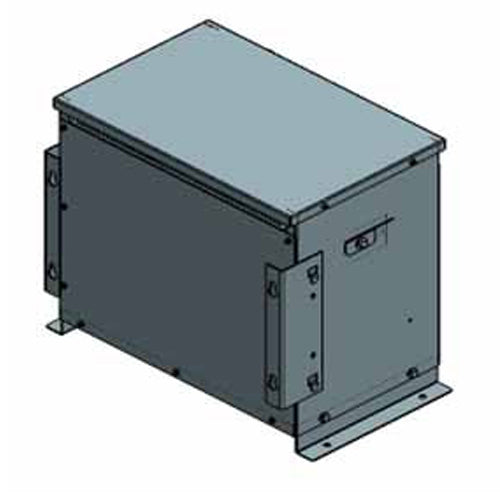

Electric Power 45K5P3B2N1T0, 45KVA, General Purpose Auto Transformer, 1 Phase, Primary 600V, Secondary 208V, Copper
Regular price
$3,488.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
45KVA, Spec No. 45K5P3B2N1T0. Primary 600V, Secondary 208V, 60Hz, Single Phase, 2 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.5 |
| Height (in) | 24.3 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 600V 60Hz |
| Secondary Voltage | 208V |
| Wattage (w) | 45KVA |
| IP Rating | NEMA 1 |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 280 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
