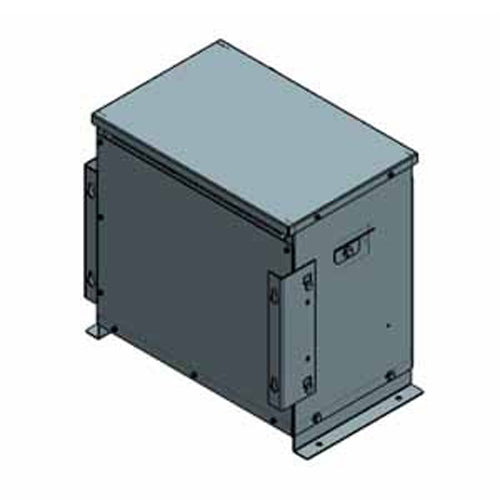

Electric Power 45K5R7C2T1, 45KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600V Delta, Secondary 480Y/277V, Copper
Regular price
$5,699.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
45KVA, Spec No. 45K5R7C2T1. Primary 600V Delta, Secondary 480V Wye / 277V, 60Hz, 3 Phase, 3 Coils, Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.5 |
| Height (in) | 24.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 480Y Wye / 277V |
| Wattage (w) | 45KVA |
| Housing | NEMA 1 |
| Type | Isolation Transformer with Neutral at 480V side |
| Weight (lb.) | 390 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
