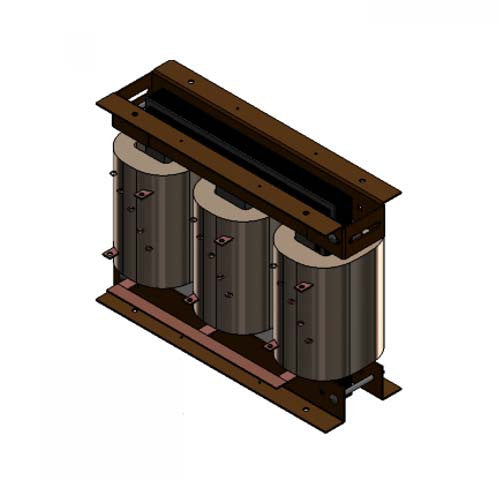

Electric Power 45K5SC3N1T1, 45KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600D, Secondary 600Y/347V, Copper, without Enclosure for Inside Mounting
Regular price
$5,995.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
45KVA, Spec No. 45K5SC3N1T1. Primary 600V Delta, Secondary 600V Wye / 347V, 60Hz, Three Phase, 3 Coil, Isolation Type, Without Enclosure for Mounted inside Control Panel or Machine Cabinet. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.5 |
| Height (in) | 24.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 600V Wye / 347V |
| Wattage (w) | 45KVA |
| Mounting | without Enclosure for Installed inside Control Panel or Machine Cabinet |
| Type | Isolation Type |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 440 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
