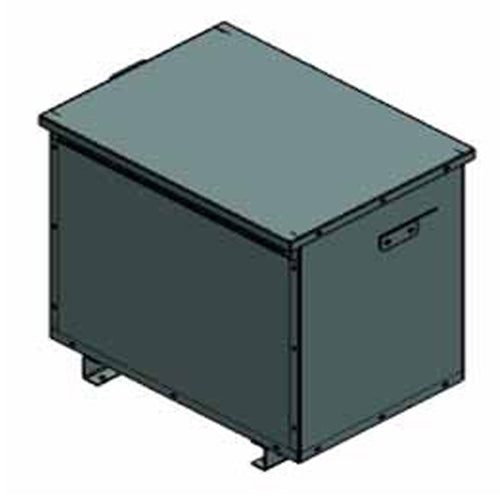

Electric Power 45K5SC4N1T2, 45KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600D, Secondary 600Y/347V, Copper
Regular price
$5,995.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
45KVA, Spec No. 45K5SC4N1T2. Primary 600D, Secondary 600Y/347, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 20.0 (Depth) |
| Width (in) | 31.7 |
| Height (in) | 26.7 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 600V Wye / 347V |
| Wattage (w) | 45KVA |
| IP Rating | NEMA 1 |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 525 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
| Cross Refefence | New Version Model# 45K5SC3N1T1 |
