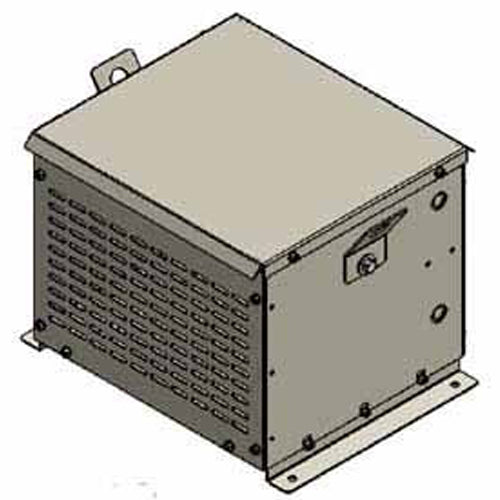

Electric Power 45L4S6ABT0, 45KVA, Auto Transformer, 3 Phase, Primary 208Y, Secondary 220Y, Copper
Regular price
$2,860.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 45L4S6ABT0. Primary 208V, Secondary 220V, 45KVA 60Hz, 3 Phase, 3 Coil, Auto Transformer Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 13-2/3 |
| Width (in) | 17 |
| Height (in) | 11-4/5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V 60Hz |
| Secondary Voltage | 220V 60Hz |
| Wattage (w) | 45KVA |
| IP Rating | NEMA 1 |
| Type | Auto Transformer without Neutral |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 77 |
| UL Listed | CSA Listed |
| Warranty | 1 Years |
