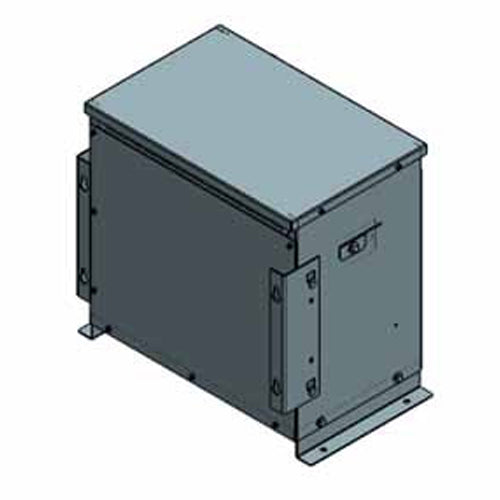

Electric Power 45M5R5A1N1T0, 45KVA, General Purpose Step Up Transformer, 3 Phase, Primary 230V, Secondary 415V, Copper Windings, Auto Type
Regular price
$3,600.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
45KVA, Spec No. 45M5R5A1N1T0. Primary 230V Wye, Secondary 415V Wye, 60Hz, 3 Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 230V Wye |
| Secondary Voltage | 415V Wye |
| Wattage (w) | 45KVA |
| Type | Auto Type Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 240 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
