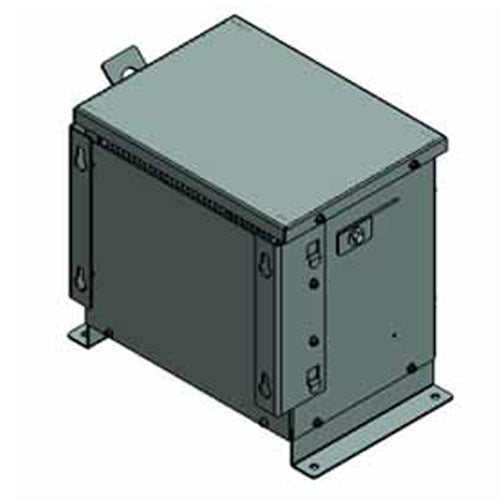

Electric Power 45MR9A1T0, 45KVA, 3 Phase Primary 600V Wye, Secondary 440V Wye, Copper, Auto Transformer
Regular price
$3,430.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 45MR9A1T0. Primary 600V Wye, Secondary 440V Wye, 60Hz, 45KVA, Three Phase, 3 Coil, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 25.1 |
| Height (in) | 20.30 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 440V Wye |
| Wattage (w) | 45KVA |
| IP Rating | NEMA 1 |
| Type | Auto Transformer without Neutral |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 215 |
| UL Listed | CSA Listed |
| Warranty | 2 Years |
