Electric Power 4K6R6CBN1T0, 4KVA, General Purpose Isolation Type, 3 Phase, Primary 600V Delta, Secondary 400Y/231V, Copper
Regular price
$1,570.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

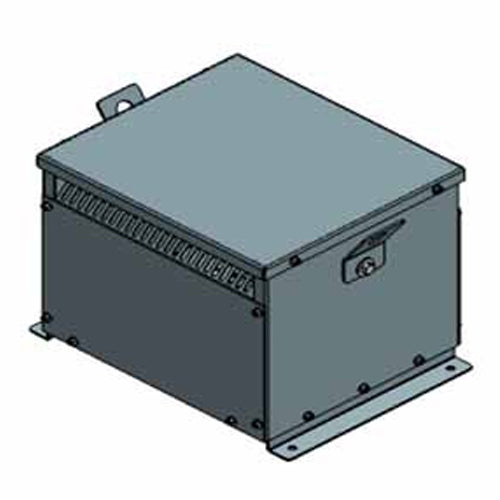

4KVA, Spec No. 4K6R6CBN1T0. Primary 600V Delta, Secondary 400V/231V Wye, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.7 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 11.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 400Y/231 |
| Material | Copper Windings |
| Wattage (w) | 4KVA |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
