Home » Electric Power 50K5S3C4N1T1, 50KVA, General Purpose Isolation Type, 3 Phase, Primary 600D, Secondary 380Y/220, Copper
Electric Power

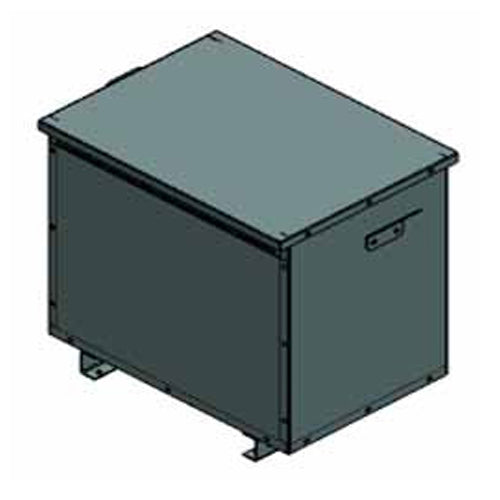

Electric Power 50K5S3C4N1T1, 50KVA, General Purpose Isolation Type, 3 Phase, Primary 600D, Secondary 380Y/220, Copper

In stock
SKU: 50K5S3C4N1T1
$7,192.00
Voltage range
Phase
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

50KVA, Spec No. 50K5S3C4N1T1. Primary 600V Delta, Secondary 380V Wye / 220V, 60Hz, Three Phase, 3 Coils, Isolation Type Step Down Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada. Compliants to NRCan 2019 Efficiency Regulations.

Length (in) 20.0 (Depth)
Width (in) 31.7
Height (in) 26.7
Winding Material Copper / Cu
Phase Three Phase
First Voltage 600D 60Hz
Secondary Voltage 380Y/220
Wattage (w) 50KVA
Material CU
Type Isolation Transformer
Start Temp. (Min) Temperature Rises: 150°C
Start Temp. (Max) Isulation Class: 220°C
Weight (lb.) 525
UL Listed CSA Listed, Compliants to NRCan 2019 Efficiency Regulations.
Warranty 2-Year
