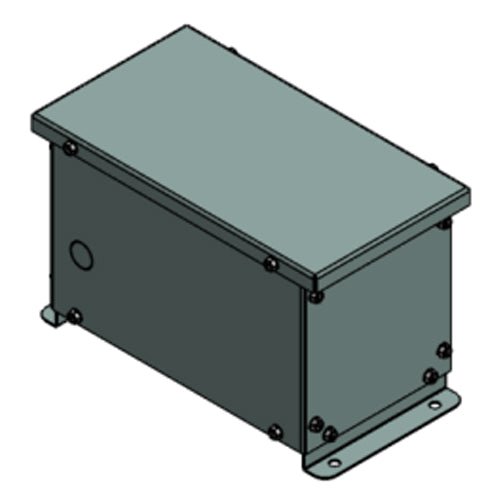

Electric Power 5J3P4BAN1T0, 5kVA, General Purpose Auto Transformer, 1 Phase, Primary 208V, Secondary 240V, Copper
Regular price
$799.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
5KVA, Spec No. 5J3P4BAN1T0. Primary 208V, Secondary 240V, 60Hz, Single Phase, 1 Coil, Auto Type Step Up Voltage Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 7.4 (Depth) |
| Width (in) | 13 |
| Height (in) | 7.3 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 208V Wye |
| Secondary Voltage | 240V 60Hz |
| Wattage (w) | 5KVA |
| Material | Copper Winding |
| Type | Auto Type Transformer, If there is no Neutral at Primary 208V side, there should be no Neutral at Secondary 240V side, please be advised. |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 40 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
