Electric Power 5J8S8CCN3T1, 5KVA, General Purpose Isolation Transformer, 3 Phase, Primary 347V Delta, Secondary 120V Wye, Copper, NEMA 3R Enclosure
Regular price
$1,890.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

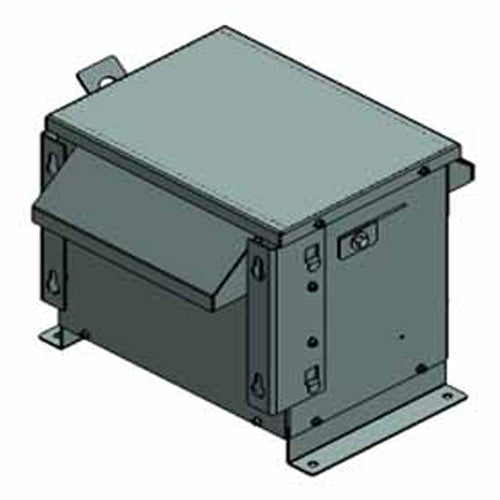

5KVA, Spec No. 5J8S8CCN3T1. Primary 347V Delta, Secondary 120V Wye, 60Hz, 3 Phase, 3 Coils, Isolation Type Transformer, NEMA 3R Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 17.6 (Depth) |
| Width (in) | 19.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 347V 60Hz |
| Secondary Voltage | 120V 60Hz |
| Wattage (w) | 5KVA |
| IP Rating | Type 3R Enclosure |
| Material | CU |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
