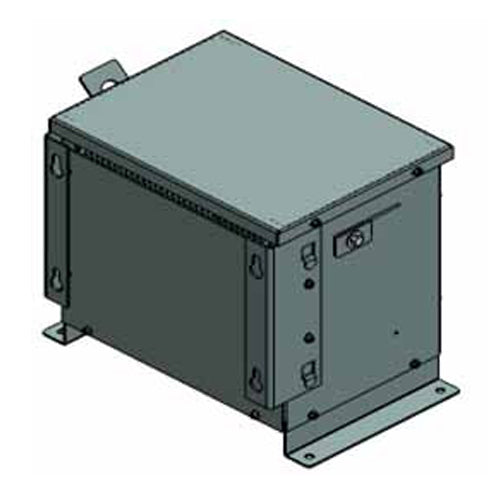

Electric Power 5K5S3CCN1T1, 5KVA, General Purpose Isolation Type, 3 Phase, Primary 600V Delta, Secondary 380Y/220, Copper
Regular price
$1,890.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
5KVA, Spec No. 5K5S3CCN1T1. Primary 600D, Secondary 380Y/220, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.5 (Depth) |
| Width (in) | 19.8 |
| Height (in) | 15.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600D 60Hz |
| Secondary Voltage | 380Y/220 |
| Wattage (w) | 5KVA |
| Material | CU |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
