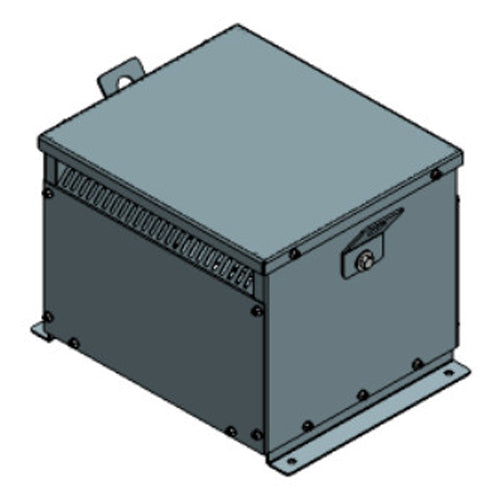

Electric Power 5L4R7ABN1T0, 5KVA, General Purpose Auto Transformer, 3 Phase, Primary 208V Wye, Secondary 480V Wye, Copper
Regular price
$1,645.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
5KVA, Spec No. 5L4R7ABN1T0. Primary 208V, Secondary 480V, 60Hz, 3 Phase, 3 Coil, Step Up Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.7 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 11.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V 60Hz Wye |
| Secondary Voltage | 480 60Hz Wye |
| Wattage (w) | 5KVA |
| Material | Copper |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
