Electric Power 5L8P4BT0, 5KVA, General Purpose Step Down Auto Transformer, 1 Phase, Primary 460V, Secondary 240V, Copper
Regular price
$1,499.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

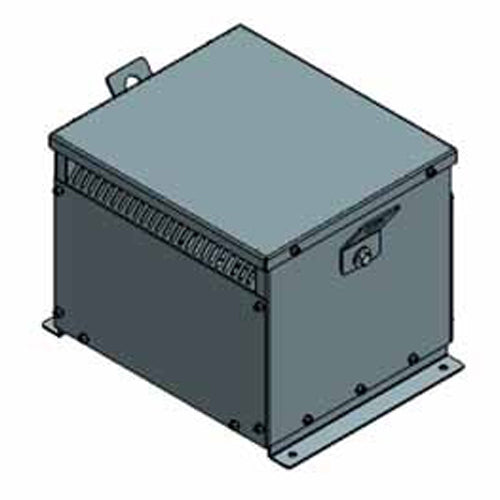

5KVA, Spec No. 5L8P4BT0. Primary 460V, Secondary 240V, 60Hz, Single Phase, 1 Coil, Step Down Auto Voltage Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12.7 (Depth) |
| Width (in) | 17.2 |
| Height (in) | 11.8 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 460V 60Hz |
| Secondary Voltage | 240V 60Hz |
| Wattage (w) | 5KVA |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 60 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
