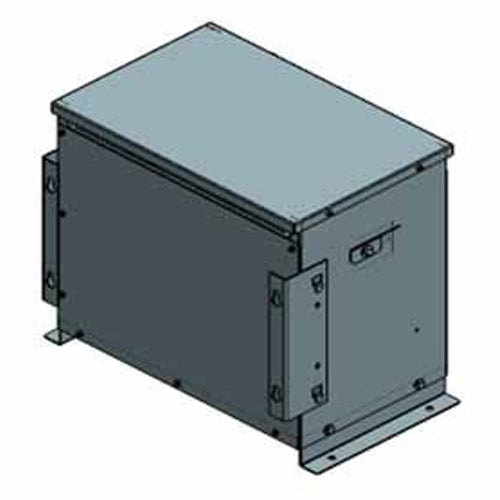

Electric Power 60L4R7A2N1T0, 60KVA, General Purpose Auto Type Transformer, 3 Phase, Primary 208V Wye, Secondary 480V Wye, Copper, NEMA 1 Enclosure
Regular price
$7,500.25
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
60KVA, Spec No. 60L4R7A2N1T0. Primary 208V Wye, Secondary 480V Wye, 60Hz, Three Phase, 3 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 19.3 (Depth) |
| Width (in) | 29.5 |
| Height (in) | 27.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208Vac Wye |
| Secondary Voltage | 480Vac Wye |
| Wattage (w) | 60kVA |
| IP Rating | NEMA 1 |
| Type | Auto |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 340 |
| UL Listed | CSA, UL Listed |
| Warranty | 2-Year |
