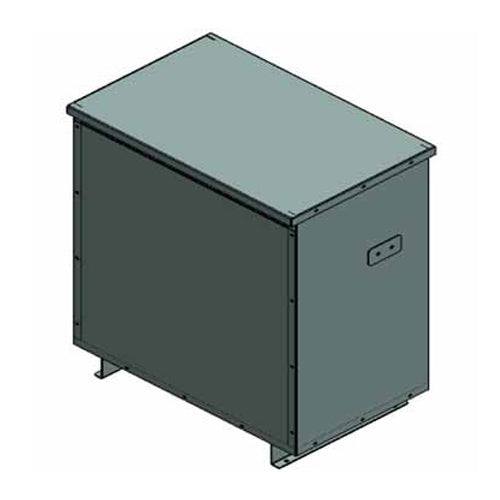

Electric Power 650K5R7C9N1T2, 650KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600V Delta, Secondary 480Y/277V, Copper, NEMA 1 Enclosure
Regular price
$64,275.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
650KVA, Spec No. 650K5R7C9N1T2, Primary 600V Delta, Secondary 480V Wye / 277V, 60Hz, 3 Phase, 3 Coils, Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 44 (Depth) |
| Width (in) | 51 |
| Height (in) | 63 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 480Y Wye / 277V |
| Wattage (w) | 650KVA |
| Type | Isolation Transformer with Neutral at 480V side |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 3200 |
| UL Listed | CSA, Approved by Intertek |
| Warranty | 2-Year |
| Cross Refefence | Electric Power 650K5R7C7N1T2 |
