Electric Power 6L4S3ABN1T0, 6KVA, General Purpose Auto Transformer, 3 Phase, Primary 208V Wye, Secondary 380V Wye, Copper Windings, NEMA 1 Enclosure
Regular price
$2,225.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

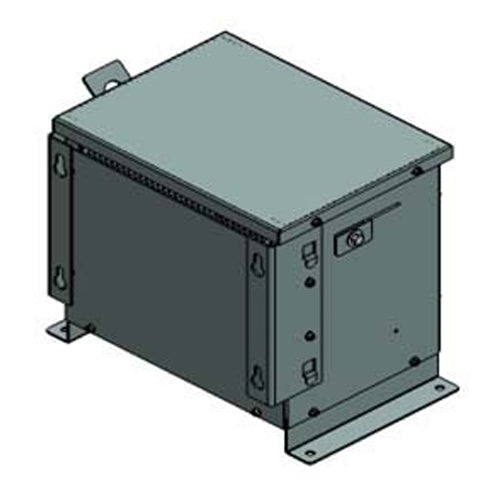

6KVA, Spec No. 6L4S3ABN1T0. Primary 208V Wye, Secondary 380V Wye, 60Hz, Three Phase, 3 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 17.2 |
| Width (in) | 14.6 |
| Height (in) | 14.8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208Vac Wye |
| Secondary Voltage | 380Vac Wye |
| Wattage (w) | 6KVA |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 75 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
