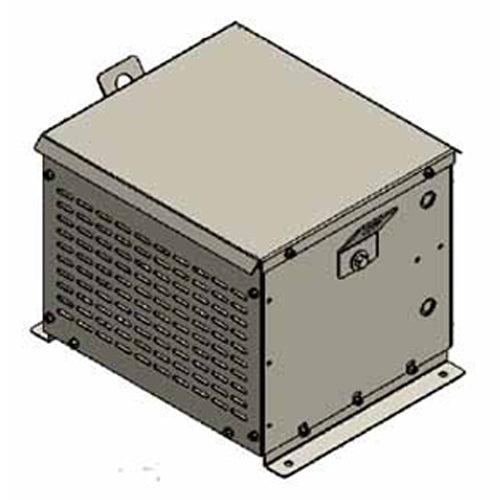

Electric Power 6MS4ACT0, 6KVA, General Purpose Auto Type Transformer, 3 Phase, Primary 600Y, Secondary 240Y, Copper
Regular price
$1,250.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 6MS4ACT0. Primary 600Y, Secondary 240Y, 60Hz, Three Phase, 3 Coil, Auto Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 13 2/3 (Depth) |
| Width (in) | 17 |
| Height (in) | 11 4/5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600Y 60Hz |
| Secondary Voltage | 240Y 60Hz |
| Wattage (w) | 6KVA |
| Material | CU |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 77 |
| UL Listed | CSA Listed |
| Warranty | 1-Year |
