Electric Power 75K5Q8D4T0, 75KVA, General Purpose Isolation Transformer, 1 Phase, Primary 600V, Secondary 120/240V, Copper
Regular price
$5,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

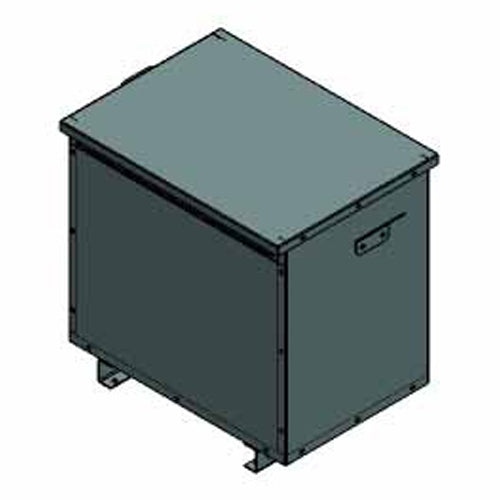

75KVA, Spec No. 75K5Q8D4T0. Primary 600V, Secondary 120/240V, 60Hz, Single Phase, 2 Coils, Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 20.0 (Depth) |
| Width (in) | 31.7 |
| Height (in) | 26.7 |
| Winding Material | Copper / Cu |
| Phase | Single Phase |
| First Voltage | 600V 60Hz |
| Secondary Voltage | 120/240V 60Hz |
| Wattage (w) | 75KVA |
| Material | CU |
| Type | Isolation Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 525 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
