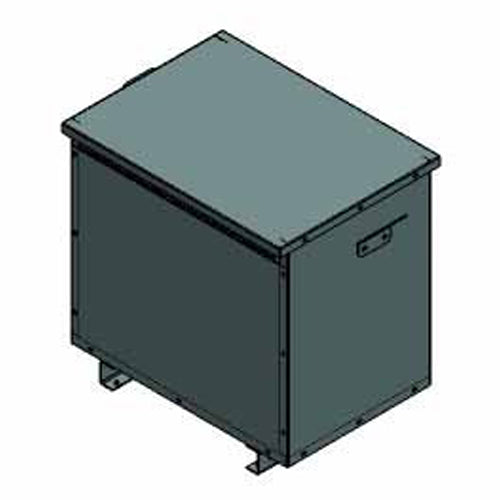

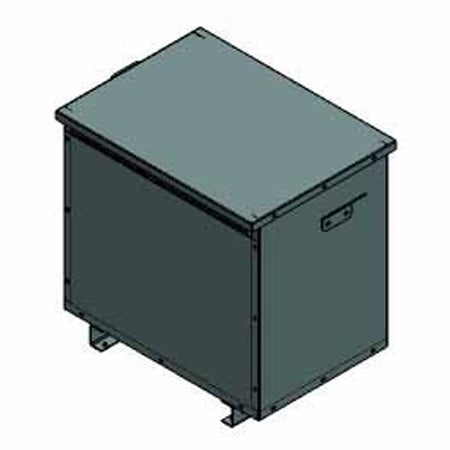

Electric Power 75K5R4C5N1T2dB, Low Noise Transformer 75KVA, General Purpose Isolation Type, 3 Phase, Primary 600V Delta, Secondary 208Y/120, Copper
Regular price
$7,599.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Low Noise Transformer, 75KVA, Spec No. 75K5R4C5N1T2dB. Primary 600D, Secondary 208Y/120, 60Hz, Three Phase, 3 Coil, Isolation Type, NEMA 1 Enclosure. Copper Conductor. CSA C22.2 No 47, C802.2 / NRCAN 2018
* Estimated 10dB less than regular same capacity transformer. Remember we cannot measure it as it is not required by CSA but practical you will fell it
| Length (in) | 22.3 (Depth) |
| Width (in) | 35.3 |
| Height (in) | 29.6 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600D 60Hz |
| Secondary Voltage | 208Y/120 |
| Wattage (w) | 75KVA |
| Material | CU |
| Type | Isolation |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 770 |
| UL Listed | CSA C22.2 No 47, C802.2 / NRCAN 2018 |
| Warranty | 2-Year |
