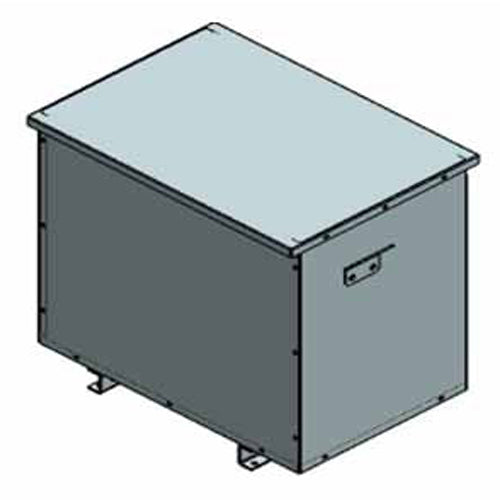

Electric Power 75K5R7C4N1T1, 75KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600V Delta, Secondary 480Y/277V, Copper
Regular price
$7,250.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
75KVA, Spec No. 75K5R7C4N1T1. Primary 600V Delta, Secondary 480V Wye / 277V, 60Hz, 3 Phase, 3 Coils, Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 20.0 (Depth) |
| Width (in) | 26.7 |
| Height (in) | 31.7 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 480Y Wye / 277V |
| Wattage (w) | 75KVA |
| Housing | NEMA 1 |
| Type | Isolation Transformer with Neutral at 480V side |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 525 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
