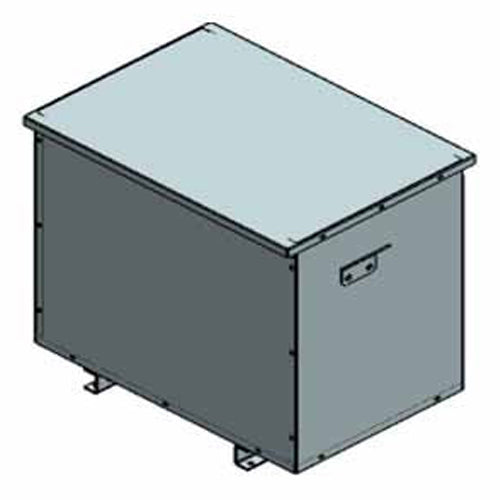

Electric Power 75K5R8C4N1T1, 75KVA, General Purpose Isolation Type Transformer, 3 Phase, Primary 600V, Secondary 460Y/266V, Copper
Regular price
$8,498.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
75kVA, Spec No. 75K5R8C4N1T1. Primary 600V, Secondary 460V Wye / 266V , 60Hz, Three Phase, 3 Coil, Step Down Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 20.0 (Depth) |
| Width (in) | 31.7 |
| Height (in) | 26.7 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V |
| Secondary Voltage | 460V Wye / 266V |
| Wattage (w) | 75KVA |
| Type | Isolation Type Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 550 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
