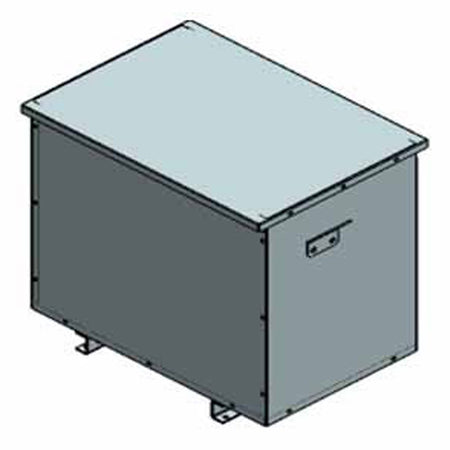

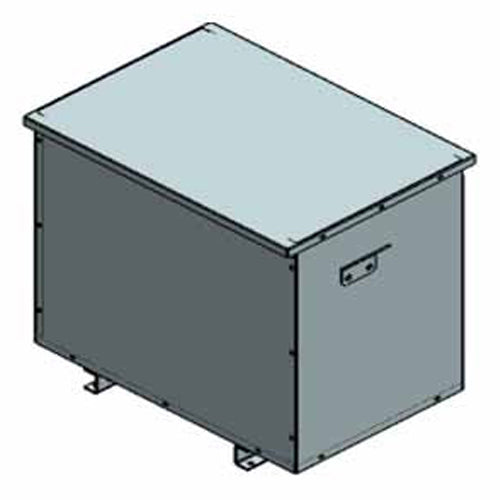

Electric Power 75K5SC5N1T2, 75KVA, General Purpose Isolation Transformer, 3 Phase, Primary 600V Delta, Secondary 600/347V Wye, Copper Winding
Regular price
$7,499.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
75KVA, Spec No. 75K5SC5N1T2. Primary 600V Delta, Secondary 600Y/347V Wye, 60Hz, Three Phase, 3 Coil, Isolation Type with Neutral Line Added, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 22.3 (Depth) |
| Width (in) | 35.3 |
| Height (in) | 29.6 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 600V / 347V Wye |
| Wattage (w) | 75KVA |
| Type | Isolation Type |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 770 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
