Electric Power 75L4S3A2N1T0, 75KVA, Auto Transformer, 3 Phase, Primary 208V Wye, Secondary 380/220V Wye, Copper Windings
Regular price
$6,745.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

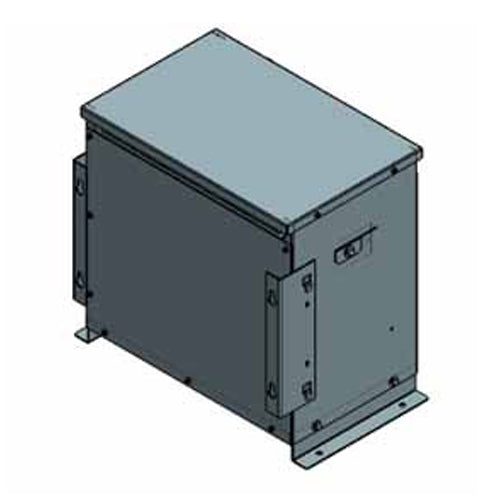

75KVA, Spec No. 75L4S3A2N1T0. Primary 208V Wye, Secondary 380V Wye, 60Hz, Three Phase, 3 Coils, Auto Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 19.3 (Depth) |
| Width (in) | 29.50 |
| Height (in) | 27.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V Wye 60Hz |
| Secondary Voltage | 380Y/220 Wye |
| Wattage (w) | 75KVA |
| Material | CU |
| Type | Auto Type Transformer, If there is no Neutral at Primary 208V side, there should be no Neutral at Secondary 380V side, please be advised. |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 340 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
