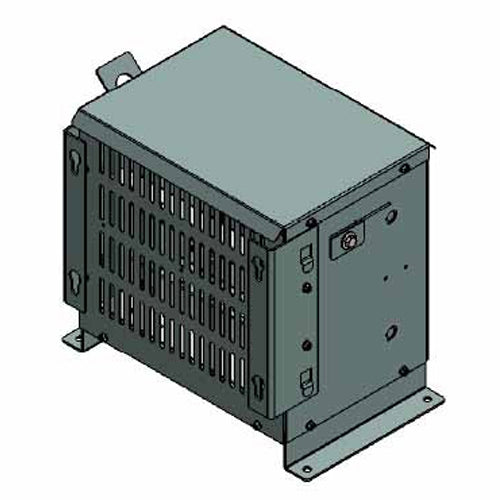

Electric Power 75L4S6ACT0, 75KVA, Auto Transformer, 3 Phase, Primary 208Y, Secondary 220Y, Copper
Regular price
$3,988.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Spec No. 75L4S6ACT0. Primary 208V, Secondary 220V, 75KVA 60Hz, 3 Phase, 3 Coil, Auto Transformer Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 12 1/5 (Depth) |
| Width (in) | 19 7/9 |
| Height (in) | 15 4/5 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 208V 60Hz |
| Secondary Voltage | 220V 60Hz |
| Wattage (w) | 75KVA |
| Material | CU |
| Type | Auto Type Transformer, If there is no Neutral at Primary 208V side, there should be no Neutral at Secondary 220V side, please be advised. |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 120 |
| UL Listed | CSA Listed |
| Warranty | 1-Year |
