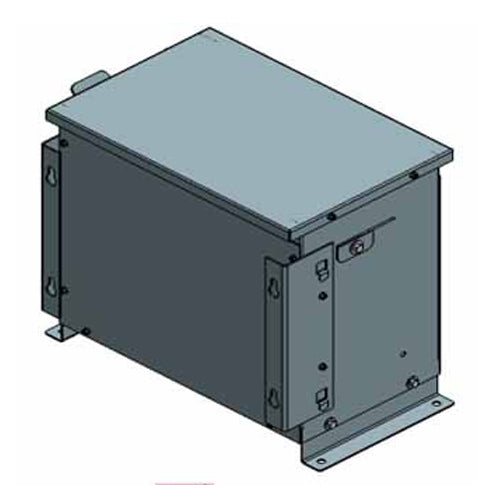

Electric Power 75L7S3A1N1T0, 75KVA, Auto Type Transformer, 3 Phase, Primary 480V Wye, Secondary 380Y/220V, Copper
Regular price
$3,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
75KVA, Spec No. 75L7S3A1N1T0. Primary 480V Wye, Secondary 380Y/220V Wye, 60Hz, Three Phase, 3 Coils, Auto Type Step Down Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 14.4 (Depth) |
| Width (in) | 25.1 |
| Height (in) | 20.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 480V Wye |
| Secondary Voltage | 380Y/220 |
| Wattage (w) | 75KVA |
| Material | CU |
| Type | Auto Type Transformer, If there is no Neutral at Primary 480V side, there should be no Neutral at Secondary 380V side, please be advised. |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 215 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
