Electric Power 75MR6A2N1T0, 75KVA, Auto Type Transformer, 3 Phase, Primary 600V Wye, Secondary 400V Wye, Copper
Regular price
$3,988.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

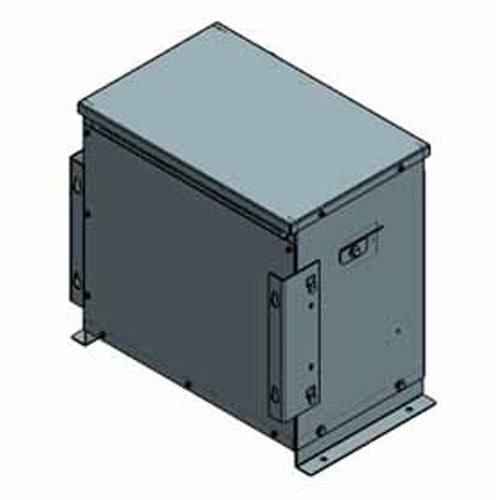

75KVA, Spec No. 75MR6A2N1T0, Primary 600V Wye, Secondary 400V Wye, 60Hz, Three Phase, 3 Coil, Auto Type, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 16.8 (Depth) |
| Width (in) | 28.5 |
| Height (in) | 24.3 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600V Wye |
| Secondary Voltage | 400V Wye |
| Wattage (w) | 75KVA |
| Material | Copper |
| Type | Auto Transformer |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 280 |
| UL Listed | CSA Listed |
| Warranty | 2-Year |
